To master React at a senior level or to crack core interviews, you need to understand how React works under the hood. Let's explore the reconciliation engine, Fiber architecture, render vs commit phases, and concurrent rendering.

1. Virtual DOM vs Real DOM (Junior/Mid-Level)

The Real DOM

The browser represents a webpage as a tree of nodes (Document Object Model). Modifying the real DOM directly is slow because the browser has to recalculate styles, layout, and repaint the screen (called Reflow and Repaint).

The Virtual DOM

React keeps a lightweight copy of the UI in memory as plain JavaScript objects.

javascript

// A React Element is just a plain JS object!
{
  type: 'button',
  props: {
    className: 'btn-primary',
    children: 'Click me'
  }
}

Reconciliation

When state changes, React builds a new virtual DOM tree. It compares this tree with the previous tree (a process called Diffing) using a heuristic algorithm with $O(N)$ complexity based on two assumptions:

Two elements of different types will produce different trees.
You can hint which child elements are stable across renders with a key prop.

Once the diffing is calculated, React applies only the minimal set of changes to the Real DOM.

2. What is Fiber? (Senior Level)

The Problem (Before React 16)

Historically, React used the Stack Reconciler. It traversed the component tree recursively. Because the JavaScript call stack is synchronous, once React started rendering an update, it could not stop. If the tree was large, the main thread would block, causing input lag, frame drops, and frozen UI (jank).

The Solution: React Fiber

Introduced in React 16, Fiber is a complete rewrite of the reconciliation core.

Fiber is a virtual stack frame. It represents a unit of work that can be paused, restarted, or discarded. Instead of recursive function calls, Fiber represents the component tree as a singly-linked list of "fiber nodes".

Anatomy of a Fiber Node:

typescript

interface FiberNode {
  type: any;             // The component or HTML tag (e.g. 'div', Button)
  key: null | string;    // Unique key identifier
  stateNode: any;        // Reference to the actual DOM element or class instance

  // Singly-linked list tree structure pointers
  child: FiberNode;      // Points to the first child
  sibling: FiberNode;    // Points to the next sibling
  return: FiberNode;     // Points to the parent fiber

  memoizedState: any;    // State currently rendered on the screen
  updateQueue: any;      // List of state changes waiting to be applied
}

Double Buffering (Work-In-Progress)

To prevent users from seeing half-rendered UIs, React uses a graphics technique called Double Buffering.

Current Tree: Represents what is currently visible on the screen.
Work-In-Progress Tree: The tree React builds in the background during rendering.

Once the Work-In-Progress tree is complete, React swaps a single pointer to make the work-in-progress tree the new current tree on the screen.

3. Render Phase vs Commit Phase (Senior Level)

React splits reconciliation into two distinct phases:

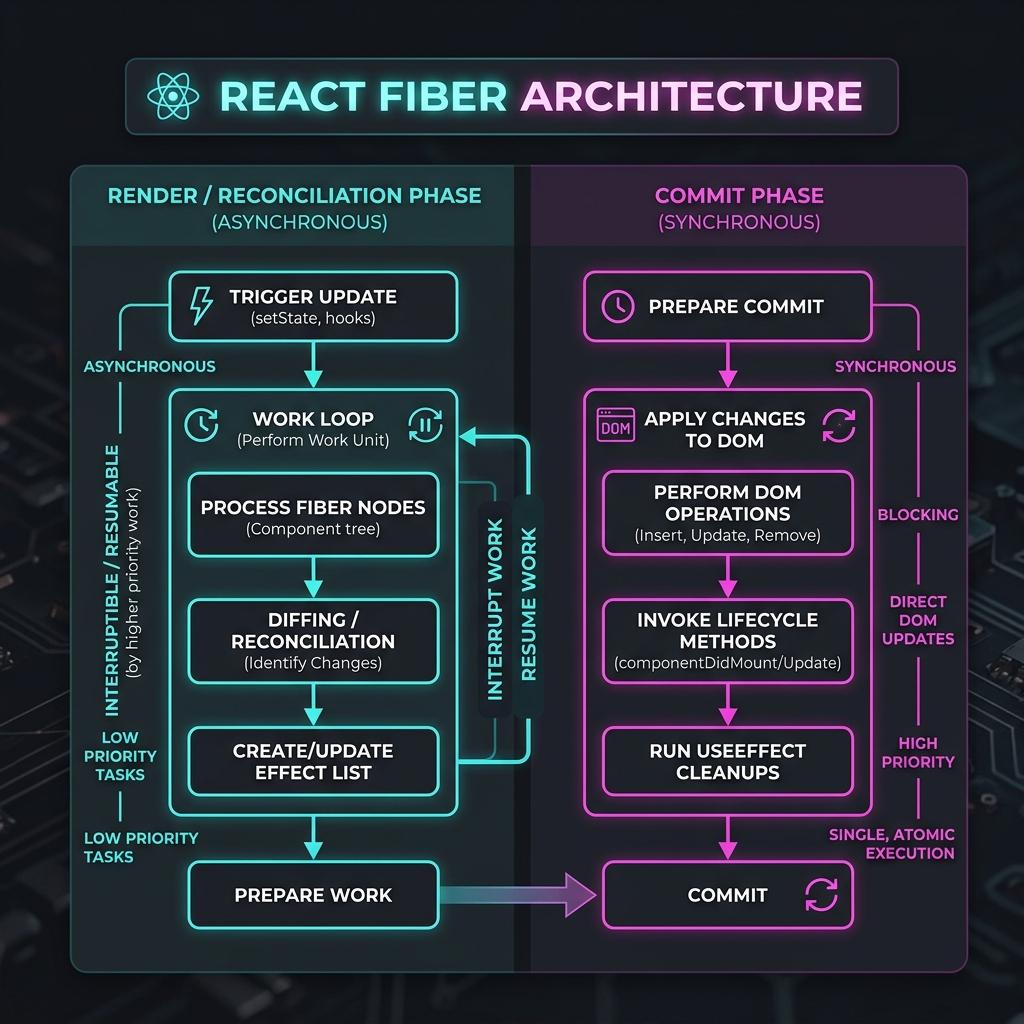

React Fiber Reconciliation vs Commit Phase

Common Pitfall

Because the Render Phase can be paused or run multiple times before committing, never put side effects (like API requests, logs, timers, or state modifications of other components) directly in the body of your functional component. Keep them inside event handlers or useEffect.

4. Concurrent Rendering (Senior Level)

Concurrent React allows React to work on multiple state updates simultaneously. It categorizes updates into:

Urgent updates: Typing, clicking, dragging (require instant feedback).
Transition updates: Loading search results, changing tabs (can tolerate minor delay).

React 18/19 exposes hooks to manage this priority:

useTransition

Allows you to mark a state update as a transition, preventing it from blocking user inputs.

tsx

import { useState, useTransition } from "react";

export const FilterList = ({ items }: { items: string[] }) => {
  const [query, setQuery] = useState("");
  const [filterText, setFilterText] = useState("");
  const [isPending, startTransition] = useTransition();

  const handleChange = (e: React.ChangeEvent<HTMLInputElement>) => {
    // 1. Keep input response urgent!
    setQuery(e.target.value);

    // 2. Mark list filtering as low priority
    startTransition(() => {
      setFilterText(e.target.value);
    });
  };

  const filteredItems = items.filter(item => item.includes(filterText));

  return (
    <div>
      <input type="text" value={query} onChange={handleChange} placeholder="Search..." />
      {isPending && <p className="text-gray-500">Loading list...</p>}
      <ul>
        {filteredItems.map(item => <li key={item}>{item}</li>)}
      </ul>
    </div>
  );
};

useDeferredValue

Defers updating a value if the screen needs to render urgent changes first. Similar to debouncing, but built into React's render loop without fixed timeout delays.

tsx

import { useState, useDeferredValue } from "react";
import { BigList } from "./BigList";

export const SearchApp = () => {
  const [query, setQuery] = useState("");

  // Defer query updates for the heavy list rendering
  const deferredQuery = useDeferredValue(query);

  return (
    <div>
      <input value={query} onChange={e => setQuery(e.target.value)} />
      {/* BigList will only re-render once browser is idle */}
      <BigList query={deferredQuery} />
    </div>
  );
};

Senior Developer Wisdom

Fiber changes tree traversal from recursive to pointer-based loop: while (nextUnitOfWork !== null) { nextUnitOfWork = performUnitOfWork(nextUnitOfWork); }. This allows React to inspect the nextUnitOfWork, check if the browser has remaining time in the current frame (using requestIdleCallback or scheduling libraries), and pause if necessary.

Fiber Checklist

Key Takeaways

Virtual DOM is a representation of the UI. Reconciliation is the sync algorithm.
Fiber represents stack frames in the heap, allowing work to be broken into chunks.
Render Phase is asynchronous and can be paused. Commit Phase is synchronous and writes updates to the DOM.
Concurrent features let React schedule low-priority rendering in the background, keeping the UI interactive.
